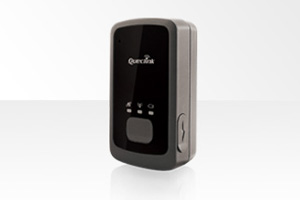

GL300

Multi-Function Mini Asset Tracker
The GL300 advanced asset tracker is a GNSS locator designed for multiple applications including employee safety, vehicle tracking, and other asset tracking.  The tracker includes a thumb-sized button designed for activities requiring fast notification of a panic situation or when the user needs to set repeated geo-fencing boundaries based on continuously changing locations.

The GL300 is water resistant, and its GNSS receiver provides both GPS and GLONASS capabilities along with faster times to first fix and increased sensitivity.  Quad band GPRS/GSM and 850/900/1800/1900 MHz capabilities support real time tracking or periodic location alerts using a backend server and mobile devices.  Motion detection through a 3-axis accelerometer extends battery life.  The GL300 supports multiple reporting options including geo-fencing, low battery alert, and scheduled GNSS location alerts.

GL300

Features

  • Water resistant
  • Quad band GSM/GPRS 850/900/1800/1900 MHz
  • Embedded full featured @Track protocol
  • Internal GSM/GNSS antennas
  • Internal GSM/GPS antennas
  • Thumb sized button allowing easier emergency alert or instant geo-fence setting
  • Low power consumption, long standby time with internal battery
  • Internal 3-axis accelerometer for power conservation and motion detection
  • Full power management, can be connected to external DC power or battery
  • CE/FCC certified

Specifications

GSM Specifications
Frequency Quad band: 850/900/1800/1900 MHz
Compliant to GSM phase 2/2+
-Class 4 (2W @ 850/900 MHz)
-Class 1 (1W @ 1800/1900 MHz)
GPRS GPRS multi-slot class 12
GPRS mobile station class B
RMS Phase Error 5 deg
Max Out RF Power GSM850/GSM900: 33.0±2 dBm
DCS/PCS: 30.0±2 dBm
Dynamic Input Range -15 ~ -108 dBm
Receiver Sensitivity Class Ⅱ RBER 2% (-107 dBm)
Stability of Frequency < 2.5 ppm
Max Frequency Error ±0.1 ppm
GNSS Performance (using GPS and GLONASS)
GNSS Receiver Type 72-channel u-blox M8 engine
Sensitivity Autonomous: -147 dBm
Hot start: -155 dBm
Tracking & navigation: -162 dBm
Reacquisition: -160 dBm
Position Accuracy Autonomous: 2.5m CEP
SBAS: 2.0m CEP
TTFF (Open Sky) Cold start: 30s average
Warm start: 28s average
Hot start: 1s average
Interfaces
Digital Inputs Two digital inputs
One positive trigger for ignition detection
One negative trigger input for normal use
Power Button Power on and power off, can be disabled by the air interface protocol
Function Button with Vibration Feedback Emergency alert or instant geo-fence
GSM/GNSS Antennas Internal only
Indicator LED GSM, GPS and battery status
Mini USB Interface For external power and configuration
General Specifications
Dimensions 68.5mm * 38.5mm * 23.5mm
Weight 60g
Battery Li-Polymer 1300 mAh, 3.7V
Standby Time Without reporting : 400 Hours
5 minutes reporting : 140 Hours
10 minutes reporting : 180 Hours
Water Resistance IPX5 compliant
Charging Voltage 5V DC
External Battery Voltage 3.5V to 4.5V DC
Operating Temperature -20°C ~ +55°C
Air Interface Protocol
Transmit Protocol TCP, UDP, SMS
Scheduled Report Report position and status according to preset time schedules
Geo-fence Support up to 5 internal geo-fence regions
Power On/Off Report Report when the device is powered on or off
Low Power Alarm Alarm when battery is low
SOS/Emergency Alarm SOS alarm when function key is pressed
Special Alarm Special alarm based on digital input
Motion Detection Motion alarm based on internal 3-axis accelerometer
