GV300VC

CDMA 1X Tracking Device

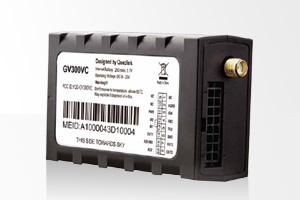

The GV300VC is a compact GPS tracker designed for a broad range of vehicle tracking applications, including monitoring driver behavior.  Multiple I/O interfaces allow the device to be used for controlling or monitoring external devices.  A GPS receiver offers superior sensitivity and faster fixes times, and CDMA2000-1x capabilities provide real time and intermittent tracking through a backend server and mobile devices.

The GV300VC is equipped with a 3-axis accelerometer for motion detection and conserving battery life, and is compatible with a wide range of reporting options, including panic alerts, geo-fencing alerts, harsh driving notifications, low battery alert, and intermittent GPS position reports.

GV300VC

Features

  • Wide operating voltage range 8V to 32V DC
  • Internal u-blox chipset
  • Low power consumption, long standby time with internal battery
  • Dual band CDMA2000-1x frequencies 800/1900 MHz
  • Embedded full featured @Track protocol
  • Multiple I/O interfaces for monitoring and control
  • Internal 3-axis accelerometer supporting driving behavior monitoring, power conservation and motion detection
  • Internal CDMA2000-1x antenna
  • Internal and external GPS antenna

Specifications

CDMA Specifications
Frequency Dual band: BC0/BC1
Compliant to CDMA2000-1x
Max Data Rate 1X RTT: 153.6 Kbps
Max Out RF Power 23 ~ 25 dBm
Min Out RF Power < -50 dBm
Dynamic Input Range -25 ~ -110 dBm
Receiving Sensitivity BC0: -110 dBm
BC1: -107 dBm
Max Frequency Error 800 MHz band: ±300 Hz
1900 MHz band: ±150 Hz
GPS Specification
GPS Chipset u-blox All-In-One GPS receiver
Sensitivity Autonomous: -147 dBm
Hot start: -160 dBm
Tracking: -162 dBm
Position Accuracy Autonomous: < 2.5m
SBAS: 2.0m
TTFF (Open Sky) Cold start: 27s average
Warm start: 27s
Hot start: < 1s
Interfaces
Digital Inputs Three digital inputs
One positive trigger for ignition detection
Two negative trigger inputs for normal use
Configurable Inputs One special input can be configured to negative trigger digital input or analog input (0-16V)
Analog Inputs One analog input (0-16V)
Digital Outputs Two digital outputs, open drain, 150 mA max drive current
Latched Digital Outputs One digital output with internal latch circuit, open drain, 150 mA max current drain
CDMA2000-1x Antenna Internal Only
GPS Antenna Internal and optional external GPS antenna
Indicator LED CEL, GPS and power
Mini USB Port Mini USB port for upgrading and debugging
Serial Port One RS232 serial port on 16 PIN molex type connector, for external devices (GARMIN protocol support)
General Specifications
Dimensions 80mm*49mm*26mm
Weight 71g
Backup Battery Li-Polymer 250 mAh
Operating Voltage 8V to 32V DC
Operating Temperature -30°C ~ +80°C (without battery)
-40°C ~ +85°C for storage (without battery)
Air Interface Protocol
Transmit Protocol TCP, UDP, SMS
Scheduled Timing Report Report position at preset time and distance intervals
Geo-fence Geo-fence alarm and parking alarm, support up to 20 internal geo-fence regions
Low Power Alarm Alarm when backup battery is low
Power On Report Report when the device is powered on
Tow Alarm From internal 3-axis accelerometer
Driving Behavior Monitoring Aggressive driving behavior detection, e.g. harsh braking and acceleration
Crash Detection Accident data collection for reconstruction and alaysis
Antenna Disconnect Alarm Alarm when the external GPS antenna is disconnected
Special Alarm Special alarm based on digital/analog inputs
Remote Control OTA control of outputs
