AVL-300 3G

Vehicle Tracking Device

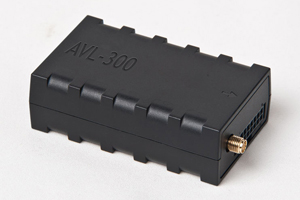

The AVL-300 3G is a compact GPS tracker designed for a wide variety of vehicle tracking applications.  It has multiple I/O interfaces that can be used for monitoring or controlling external devices.  Its built-in GPS receiver has superior sensitivity and fast time to first fix.  Its triple band WCDMA subsystem supports UMTS/HSDPA 850 (Band V) / 1900 (Band II) / 2100 (Band I) MHz and quad band GSM/GPRS 850/900/1800/1900 MHz allowing the AVL-300 3G’s location to be monitored in real time or periodically tracked by a backend server and mobile devices.  Its built-in 3-axis accelerometer allows motion detection and extends battery life through sophisticated power management algorithms.

System integration is straightforward as complete documentation is provided for the full featured @Track protocol.  The @Track protocol supports a wide variety of reports including emergency, geo-fence boundary crossings, driving behavior, low battery and scheduled GPS position.

  • 80 x 49 x 26 mm
  • Wide Operating Voltage Range 8V to 32V DC
  • Multiple I/Os Including 1 Smart Input
  • GARMIN FMI/Multiple Sensors/Voice Support
  • Wide operating voltage range 8V to 32V DC
  • Internal u-blox chipset
  • Low power consumption, long standby time with internal battery
  • Triple band frequencies UMTS/HSDPA 850 (Band V) / 1900 (Band II) / 2100 (Band I) MHz and quad band GSM/GPRS 850/900/1800/1900 MHz
  • Embedded full featured @Track protocol
  • Multiple I/O interfaces for monitoring and control
  • Internal 3-axis accelerometer supporting driving behavior monitoring, power saving and motion detection
  • Internal UMTS/HSDPA and GSM antenna
  • Internal and external GPS antenna
  • CE/FCC/E-Mark certified
