Over 12 Years of Experience in GPS Tracking

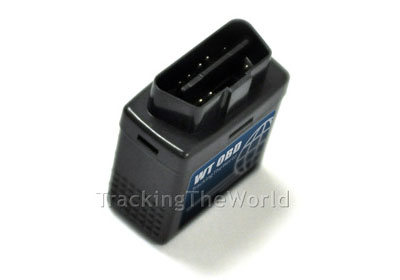

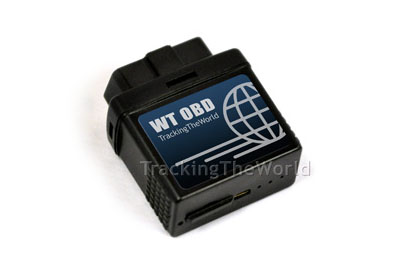

OBD Vehicle Tracking Device

The WT-OBD is a vehicle tracking device that plugs into a vehicle's OBD II port.  It's compact design allows easy installation.  Its internal OBD reader can obtain information from the vehicle's on-board computer and relay it over GPRS networks.  Its built in GPS receiver has superior sensitivity and fast time to first fix.

Its quad band GPRS/GSM subsystem supports 850/900/1800/1900 MHz allowing the WT-OBD's location to be monitored in real time or periodically tracked by a backend server and mobile devices.  Its built in 3-axis accelerometer allows motion detection and extended backup battery life through sophisticated power management algorithms.

System integration is straightforward as complete documentation is provided for the full featured @Track protocol.  The @Track protocol supports a wide variety of reports including; emergency, geo-fence boundary crossings, driver behaviour, low battery or scheduled GPS position and many other useful functions.

  • 48 x 25 x 48 mm
  • Compact Design, Plug and Play
  • Real Time Vehicle Status Monitoring From OBD Port
  • Wide Operating Voltage Range 8V to 32V DC
  • Perfect for Insurance and Car Leasing / Rental Applications
  • OBDII connectivity, easy to install
  • Quad band GSM/GPRS frequencies 850/900/1800/1900 MHz
  • Wide operating voltage range 8V to 32V DC
  • Internal u-blox chipset
  • Embedded full featured @Track protocol
  • Internal 3-axis accelerometer for power saving and motion detection
  • Internal GSM antenna
  • Two internal GPS antennas, automatically use the one with better signal
  • FCC/CE/E-Mark certified
