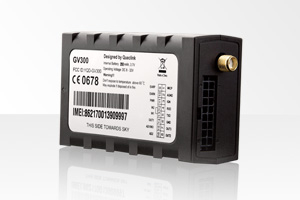

GV300

Advanced Vehicle Tracking Device
The GV300 vehicle-tracking device is ideal for a broad variety of vehicle tracking applications.  With multiple I/O interfaces, the GV300 has the capability to monitor and/or control external devices.  The device offers professional-grade tracking through greater sensitivity and faster times to first fix.

The GV300’s Quad band GPRS/GSM allows for real time tracking or periodic tracking reports through a backend server or mobile devices.  A 3-axis accelerometer provides accurate driver behavior monitoring and motion detection to preserve battery life.

The device offers multiple reporting options, including geo-fencing, monitoring driving habits, low battery alert, scheduled GPS location reporting, and panic alert.  Complete documentation is provided.

GV300

Features

  • Wide operating voltage range 8V to 32V DC
  • Internal u-blox chipset
  • Low power consumption, long standby time with internal battery
  • Quad band GSM/GPRS 850/900/1800/1900 MHz
  • Embedded full featured @Track protocol
  • Multiple I/O interfaces for monitoring and control
  • Internal 3-axis accelerometer for power conservation and motion detection
  • Internal GSM antenna
  • Internal and external GPS antenna
  • CE/FCC/PTCRB/Anatel/E-Mark certified

Specifications

GSM Specifications
Frequency Quad band: 850/900/1800/1900 MHz
Compliant to GSM phase 2/2+
-Class 4 (2W @ 850/900 MHz)
-Class 1 (1W @ 1800/1900 MHz)
GPRS GPRS multi-slot class 12
GPRS mobile station class B
RMS Phase Error 5 deg
Max Out RF Power GSM850/GSM900: 33.0±2 dBm
DCS/PCS: 30.0±2 dBm
Dynamic Input Range -15 ~ -108 dBm
Receiver Sensitivity Class Ⅱ RBER 2% (-107 dBm)
Stability Of Frequency < 2.5 ppm
Max Frequency Error ±0.1 ppm
GPS Specifications
GPS Chipset u-blox All-In-One GPS receiver
Sensitivity Autonomous: -148 dBm
Hot start: -160 dBm
Tracking: -162 dBm
Position Accuracy Autonomous: < 2.5m
SBAS: 2.0m
TTFF (Open Sky) Cold start: 30s average
Warm start: < 30s
Hot start: < 1.2s
Interfaces
Digital Inputs Three digital inputs
One positive trigger for ignition detection
Two negative trigger inputs for normal use
Configurable Inputs One special input can be configured to negative trigger digital input or analog input (0-16V)
Analog Inputs One analog input (0.3-16V)
Digital Outputs Two digital outputs, open drain, 150 mA max current drain
Latched Digital Outputs One digital output with internal latch circuit, open drain, 150 mA max current drain
Two-way Audio Two differential outputs/one single end input
GSM Antenna Internal only
GPS Antenna Internal and optional external GPS antenna
Indicator LED GSM, GPS and power
Mini USB Port Mini USB port for upgrading and debugging
Serial Port One RS232 serial port on 16 pin molex type connector, for external devices (GARMIN protocol support)
General Specifications
Dimensions 80mm*49mm*26mm
Weight 71g
Backup Battery Li-Polymer 250 mAh
Standby Time Without reporting: 58 hours
5 minutes reporting: 33 hours
10 minutes reporting: 45 hours
Operating Voltage 8V to 32V DC
Operation Temperature -30°C ~ +80°C (without battery)
-40°C ~ +85°C for storage (without battery)
Air Interface Protocol
Transmit Protocol TCP, UDP, SMS
Scheduled Timing Report Report position at preset time and distance intervals
Geo-fence Geo-fence alarm and parking alarm, support up to 20 internal geo-fence regions
Low Power Alarm Alarm when backup battery is low
Power On Report Report when the device is powered on
Tow Alarm From internal 3-axis accelerometer
Antenna Disconnect Alarm Alarm when the external GPS antenna is disconnected
Special Alarm Special alarm based on the digital/analog inputs
Remote Control OTA control of outputs
