GV55VC

CDMA 1X Micro Vehicle Tracking Device
As a cost effective micro CDMA tracking option, the GV55VC offers reliable tracking across multiple tracking applications.  Multiple I/0 interfaces allow for monitoring or operating external hardware, and the device's GPS receiver ensures greater sensitivity and faster fix times.

The device supports real time tracking and intermittent tracking options through dual band CDMA200-1x.  Supports additional features including panic alerts, geofence setting and monitoring, external power supply monitoring, and programmed GPS location reports.  Full documentation is provided.

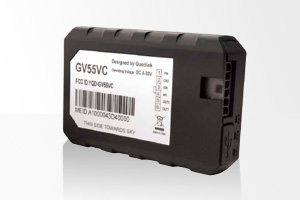

GV55VC

Features

  • Micro-sized device allowing easier and more covert installation
  • Internal u-blox chipset
  • Dual band CDMA2000-1x frequencies 800/1900 MHz
  • Embedded full featured @Track protocol
  • Multiple I/O interfaces for monitoring and control
  • Internal CDMA2000-1x antenna
  • Internal GPS antenna

Specifications

GSM Specifications
Frequency Dual band: BC0/BC1
Compliant to CDMA2000-1x
Max Data Rate 1X RTT: 153.6 Kbps
Max Out RF Power 23 ~ 25 dBm
Min Out RF Power < -50 dBm
Dynamic Input Range -25 ~ -110 dBm
Receiving Sensitivity BC0: -110 dBm
BC1: -107 dBm
Max Frequency Error 800 MHz band: ±300 Hz
1900 MHz band ±150 Hz
GPS Specifications
GPS Chipset u-blox All-In-One GPS receiver
Sensitivity Autonomous: -147 dBm
Hot start: -160 dBm
Tracking: -162 dBm
Position Accuracy Autonomous: < 2.5m
SBAS: 2.0m
TTFF (Open Sky) Cold start: 27s average
Warm start: 27s
Hot start: < 1s
Interfaces
Digital Inputs Two digital inputs
One positive trigger for ignition detection
One negative trigger input for normal use
Digital Outputs One digital output, open drain, 150 mA max drive current
Latched Digital Outputs One digital output with internal latch circuit, open drain, 150 mA max current drain
CDMA2000-1x Antenna Internal only
GPS Antenna Internal only
Indicator LED CEL, GPS and power
Mini USB Port Mini USB port for upgrading and debugging
General Specifications
Dimensions 73mm*50mm*13.2mm
Weight 45g
Operating Voltage 8V to 32V DC
Operating Temperature -30°C ~ +80°C
-40°C ~ +85°C for storage
Air Interface Protocol
Transmit Protocol TCP, UDP, SMS
Scheduled Timing Report Report position and status at preset intervals
Geo-fence Geo-fence alarm and parking alarm, support up to 20 internal geo-fence regions
Power On Report Report when the device is powered on
Special Alarm Special alarm based on the digital inputs
Remote Control OTA control of digital outputs
